Product Name |
Fe2O3 Fe3O4 content |
ΔE |
Tinting strength |
Water solube salt |
Reside on sieve |
PH Value |
Oil absorption |
Volatiles at 105’C |
Predominant particle size |
Min% | Max% | Rang | Max% | Max% | Rang | Rang | Max% | Max% | |

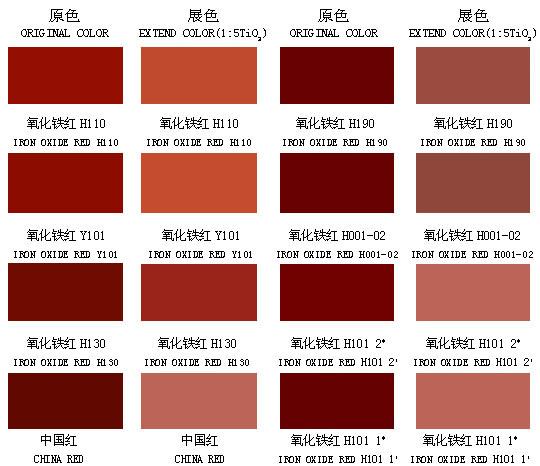

H110 | 95 | 1.0 | 95~105 | 0.3 | 0.3 | 5~7 | 15~25 | 1.0 | 5 |
Y101 | 95 | 1.0 | 95~105 | 0.3 | 0.3 | 5~7 | 15~25 | 1.0 | 5 |
H130 | 95 | 1.0 | 95~105 | 0.3 | 0.3 | 5~7 | 15~25 | 1.0 | 5 |
CHINA RED | 95 | 1.0 | 95~105 | 0.3 | 0.3 | 5~7 | 15~25 | 1.0 | 5 |
H101(1*) | 95 | 1.0 | 95~105 | 0.3 | 0.3 | 5~7 | 15~25 | 1.0 | 5 |
H101(2*) | 95 | 1.0 | 95~105 | 0.3 | 0.3 | 5~7 | 15~25 | 1.0 | 5 |
H001-02 | 95 | 1.0 | 95~105 | 0.3 | 0.3 | 5~7 | 15~25 | 1.0 | 5 |
H190 | 94 | 1.0 | 95~105 | 0.3 | 0.3 | 5~7 | 15~25 | 1.0 | 5 |
Technical Parameter | |||||||||
Product Name |
Fe2O3 Fe3O4 content |
ΔE |
Tinting strength |
Water solube salt |
Reside on sieve |
PH Value |
Oil absorption |
Volatiles at 105¡ãC |
Predominant particle size |
Min% | Max% | Rang | Max% | Max% | Rang | Rang | Max% | Max% | |
G313 | 86 | 1.0 | 95~105 | 0.5 | 0.4 | 3.5~7 | 25~25 | 1.0 | 14 |
G313-310 | 86 | 1.0 | 95~105 | 0.5 | 0.4 | 3.5~7 | 25~25 | 1.0 | 14 |
G313-330 | 86 | 1.0 | 95~105 | 0.5 | 0.4 | 3.5~7 | 25~25 | 1.0 | 14 |
Orange Yellow G313-340 | 86 | 1.0 | 95~105 | 0.5 | 0.4 | 3.5~7 | 25~25 | 1.0 | 14 |
Product Name |
Fe2O3 Fe3O4 content |
ΔE |
Tinting strength |
Water solube salt |
Reside on sieve |
PH Value |
Oil absorption |
Volatiles at 105°C |
Predominant particle size |
Min% | Max% | Rang | Max% | Max% | Rang | Rang | Max% | Max% | |

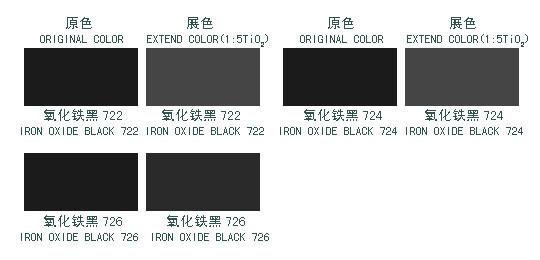

722 | 95 | 1.0 | 95~105 | 0.5 | 0.4 | 5~8 | 15~25 | 1.0 | 7 |
724 | 95 | 1.0 | 95~105 | 0.5 | 0.4 | 5~8 | 15~25 | 1.0 | 7 |
726 | 95 | 1.0 | 95~105 | 0.5 | 0.4 | 5~8 | 15~25 | 1.0 | 7 |
Product Name |
Fe2O3 Fe3O4 content |
ΔE |
Tinting strength |
Water solube salt |
Reside on sieve |
PH Value |
Oil absorption |
Volatiles at 105¡ãC |
Predominant particle size |
Min% | Max% | Rang | Max% | Max% | Rang | Rang | Max% | Max% | |
Pearl Blue Lu90-410 |
1.5 | 95~105 | 0.5 | 1.5 | |||||
Iron Oxide Brown Zo01-510 |
90 | 1.0 | 95~105 | 0.4 | 0.4 | 4~7 | 15~25 | 1.0 | 10 |
Iron Oxide Brown Zo01-520 |
91 | 1.0 | 95~105 | 0.4 | 0.4 | 4~7 | 15~25 | 1.0 | 9 |
Iron Oxide Brown Zo01-530 |
92 | 1.0 | 95~105 | 0.4 | 0.4 | 4~7 | 15~25 | 1.0 | 8 |
